Rumah / Buka Penjana / Penjana Terbuka Perkins /

Kuasa Perdana 1600kva 1280kw Penjana Diesel Perkins Set Penjana Kalis Bunyi 4012-46TAG3A

Prime Power Generator 1600kva
Prime Power Generator 1600kva
Prime Power Generator 1600kva
Prime Power Generator 1600kva

Kuasa Perdana 1600kva 1280kw Penjana Diesel Perkins Set Penjana Kalis Bunyi 4012-46TAG3A

Penjana Diesel Perkins 1600kva 1280kw Dengan Enjin 4012-46TAG3A

  • Barang No.:

    A1280

  • Pesanan(MOQ):

    1

  • Bayaran:

    FOB

  • Harga pasaran:

    $170000

  • harga:

    $17000/SET

  • Asal Produk:

    China

  • Warna:

    customized

  • Pelabuhan Penghantaran:

    Fujian, China

  • Masa Utama:

    25days

  • Berat produk:

    128000
Tanya Sekarang
Product Description


Prime Power 1600kva 1280kw Perkins Diesel Generator Soundproof Generator Set With UK Engine 4012-46TAG3A


Engine
GENERAL ENGINE DATA
Engine manufacture
Perkins Engines Company Limited
Engine brand
Perkins
Engine model
4012-46TAG3A
Engine speed (rpm)
1500
Prime power
Gross engine power (kWb)
1500
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
1364
Cylinders
12-cylinder, 60° Vee
Cycle
4 stroke
Induction system
Turbocharged
Combustion system
Direct injection
Compression ratio
13:01
Bore * Stroke (mm)
160 * 190
Cubic capacity (Litre)
45.842
FUEL SYSTEM
Injection system
Direct
Governor type
electronic
Fuel Consumption (litre/hour)
Standby
405
Prime
370
Baseload
310
75% output power
275
50% output power
210
COOLING SYSTEM
Total coolant capacity: Jacket Water (Litres)
engine only
73
Temperate cooling (engine and radiator)
207
Tropical cooling (engine and radiator)
210
Thermostat operating range (°C)
71-85
Shutdown switch setting (°C)
101
LUBRICATION SYSTEM
Total system capacity (liter)
177
Maximum sump capacity (liter)
157.5
Minimum sump capacity (liter)
115
Oil temperature at normal operating conditions (°C)
95
Oil pressure at rated speed (kPa)
400
Oil pressure Minimum @80°C (kPa)
340
Shutdown switch - pressure setting (kPa)
193 (falling)
INDUCTION SYSTEM
Maximum air intake restriction of engine (kPa)
Clean filter
2
Dirty filter
4
Combustion air flow(standby/prime power) (m3/min)
135 / 125
EXHAUST SYSTEM
Back pressure for total system (kPa)
5
Exhaust gas temp. after turbo(standby/prime power)(°C)
480
Exhaust gas flow (standby/prime power) (m3/min
350
ELECTRICAL SYSTEM
Alternator voltage (volts)
24
Alternator output (amps)
40
Stater motor type (volts)
24
Starter motor power (kw)
16.4
ALTERNATOR
Alternator manufacturer
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand
Leroysomer
Alternator model
LSA50.2VL10
Control system
AREP
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)
----------------Cont.H-40°C
1640/1312
----------------Standby-27°C
1800/1440
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single


Diesel Generator Supply Scope


• UK Per kins diesel Engine include air, fuel, oil filters, starting motor and charge alternator etc.

• Brushless AC alternator, single bearing, flange connection, with AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery with connecting cable and floating battery charger
• Flexible pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.
•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc



Products Show

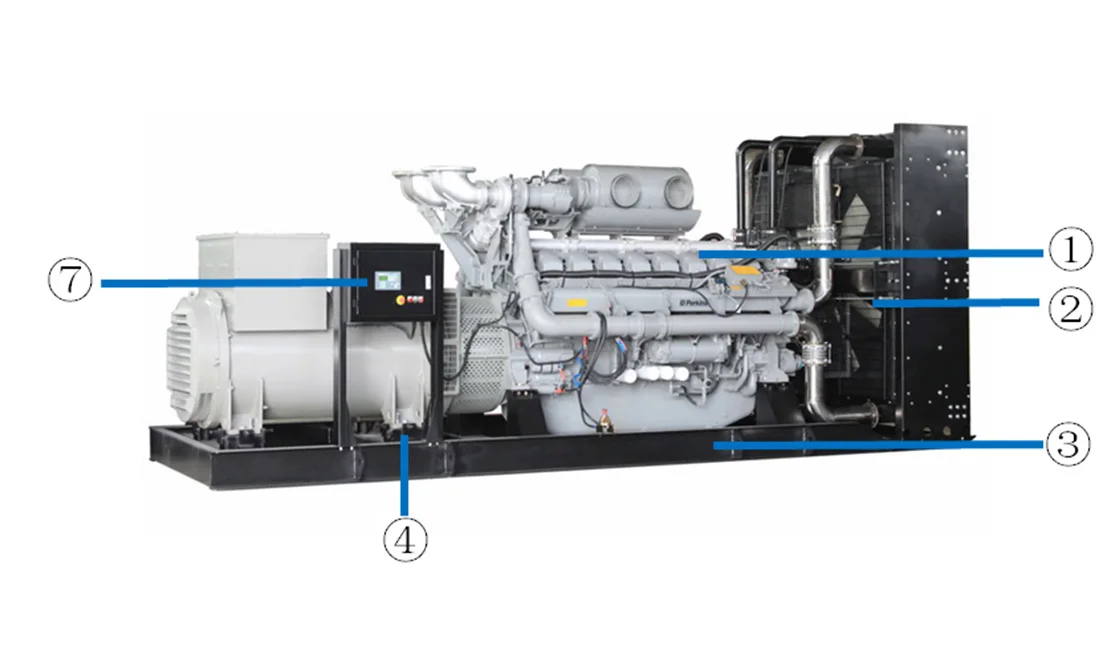

Product Details


Famous brand engine couple with high quality alternator

Large size cooling radiator
Heavy duty steel base frame
Strong anti-vibration mat
Standard free maintenance battery
AC alternator for battery charger
Heavy-duty air filter, oil filter, water filter
Famous brand controller and breaker
Optional fuel tank, silent canopy, ATS, synchronization panels.



More than 2mm thick steel to make the canopy.

High quality paint materials and strict powder paint processing.
large-scale impedance combined type silencer effectively reducing noise of the generator.
Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
High quality soundproof and insulation materials could efficiently reduce noise.
Transparent viewing window make the control panel clear at a glance.
Lifting ear is mounted in the base frame for easy pull.
Elegant appearance and reliable quality.
From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.



Control panel

①Pengawal kelajuan
②pengecas bateri utama
③geganti perlindungan
④terminal sambungan pendawaian
⑤MCCB digunakan untuk perlindungan
⑥Pengawal Laut Dalam



Fungsi perlindungan

1. Tekanan minyak rendah
2. Suhu air tinggi
3. Voltan tinggi dan voltan rendah
4. Arus lebih
5. Laju lampau
6. Pelaras volt dan pelaras frekuensi.
7. Berhenti kecemasan
8. Penggera dan penutupan bahan api rendah
9. Penggera dan penutupan bahan api rendah
